As one of the earliest domestic suppliers to lay out HUD, Hansitong has been committed to independent innovation, positive research and development, and continuously improving product performance and user experience. Recently, the third generation calibration equipment of EOI, a basic tool developed by Hansitong HUD, has been officially put into use. After exploring the first generation of functions, the second generation has gradually improved and achieved semi automation. Today, the third generation has achieved full stack automation calibration and efficient detection, once again standing at the forefront of the industry. Next, please explore the infinite possibilities of the third generation fully automatic EOI calibration equipment of the HanSitong HUD together:

Fully automated development, technology deduces the future

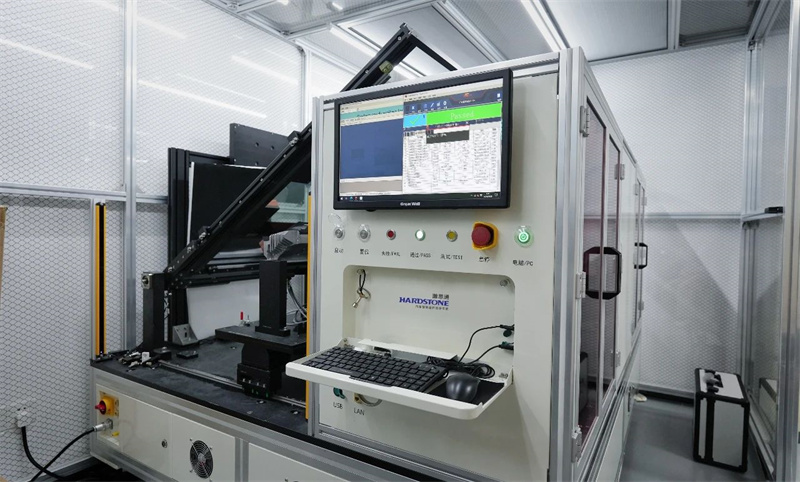

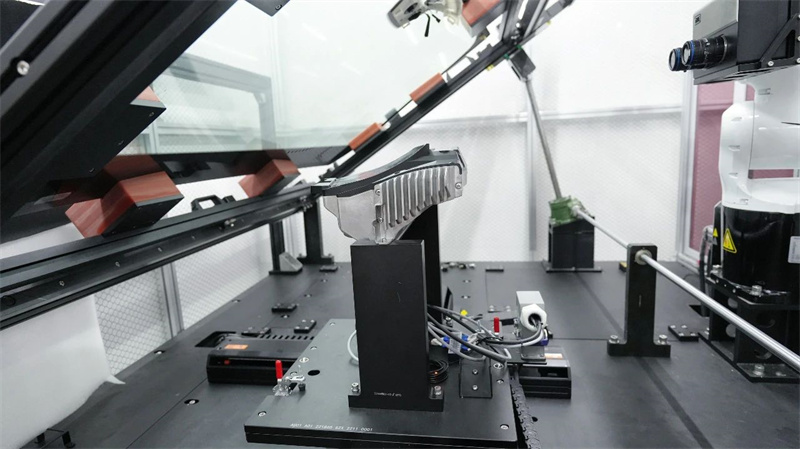

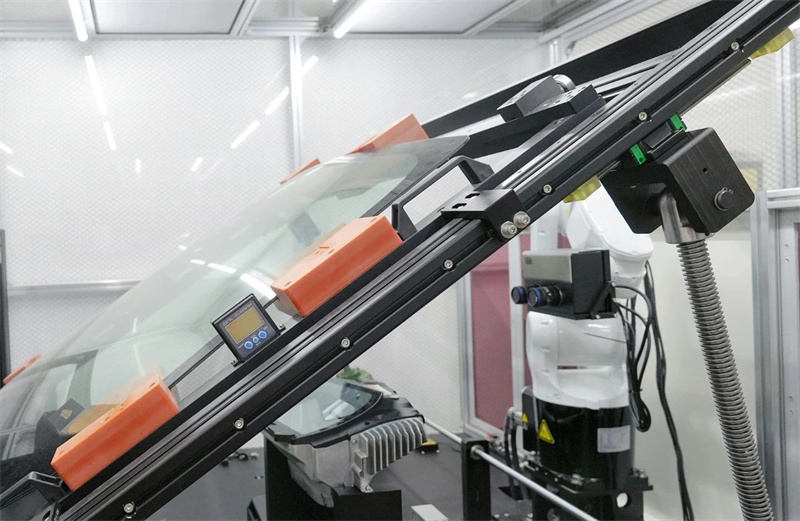

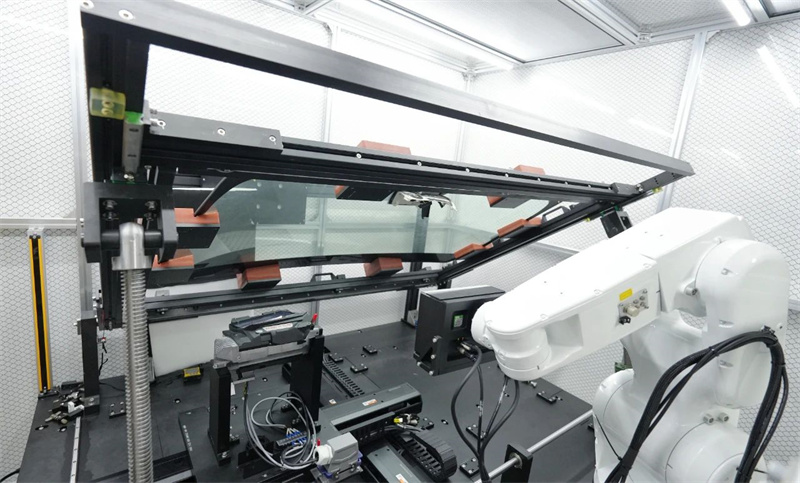

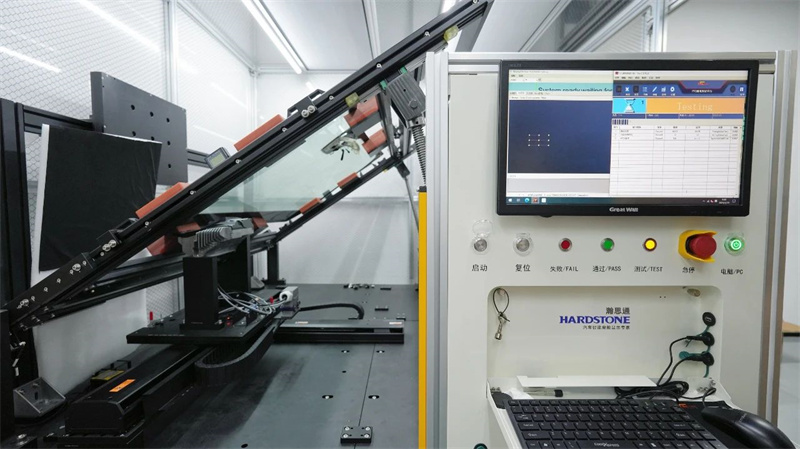

The HUD fully automatic EOI calibration equipment is an independent research and development achievement of Hansitong, demonstrating strong technical strength and innovative ability. This device supports fully automated research and development, achieving full automatic operation of multiple functions such as FOV, VID, distortion, brightness calibration, and distortion calibration. Through an intelligent system and advanced algorithms, this device excels in technology with excellent accuracy and stability, providing an intelligent and efficient detection process for the research and development of HUD.

Automated FOV and VID calibration, breaking through visual boundaries

The HUD fully automatic EOI calibration equipment has opened up a new prospect, supporting automated measurement of FOV (field of view) and VID (virtual image distance) displayed by HUD, covering the measurement range from W-HUD to AR-HUD, allowing virtual images to present a wider range and more realistic distance sense in the driver's field of view, thereby achieving clearer and more visually appealing virtual image display effects, further expanding the technical boundaries of HUD virtual image display, improving driving experience, and ensuring driving safety.

Accurate distortion and brightness calibration for a comfortable driving experience

The HUD fully automatic EOI calibration equipment has excellent distortion correction ability, which can automatically control HUD display distortion within an extremely low range, achieving high-precision display effects with a distortion rate of less than 1%. In addition, the device also has a fully automatic brightness level calibration function, with a brightness automation calibration level of up to 100 levels, ensuring that HUD can achieve the best display effect under various lighting conditions, avoiding glare or blurry interference to the greatest extent, and providing a comfortable and worry free driving experience.

Intelligent communication function detection, stable information transmission

The HUD fully automatic EOI calibration equipment can automatically detect the operation of communication functions. This feature supports automated and precise evaluation of communication performance between HUD and the host, including key indicators such as transmission speed, data accuracy, and stability. Efficient and accurate detection provides a foundation for rapid optimization and adjustment, ensuring the accurate display of key information such as HUD navigation indicators, vehicle status, and road warnings. At the same time, it ensures smooth information transmission between HUD and the host, achieving stable and reliable communication, and providing excellent driving safety for drivers.

Efficient process to assist host factories in rapid inspection

In response to the differentiated needs of host factory customers, supported by an efficient and accurate detection process, the HUD fully automatic EOI calibration equipment provides host factories with a more flexible and reliable HUD detection solution. It supports online testing and HUD inspection by host factories, quickly evaluating the performance and quality of HUD, and ensuring the stability of product quality control.

The Hansitong HUD fully automatic EOI calibration equipment stands out in the field of automotive intelligent cabins with leading technology and powerful performance. As a leading solution in the industry, it will serve as a solid support for the Han Si Tong W-HUD and AR-HUD, and will further promote the innovative development of HUD technology. Hansitong has always been committed to providing consumers and customers with trustworthy quality and service. We believe that in the future, the HUD fully automatic EOI calibration equipment under Hansitong will become a powerful assistant for host manufacturers and even the entire HUD industry, leading the industry towards a higher level.
